GV-AS Manager


GV-ASManager

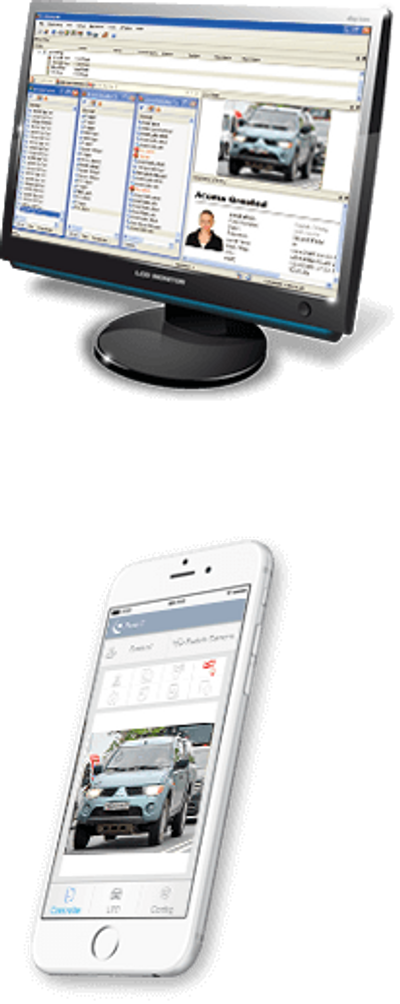

 GV-ASManager offers a network access control solution suitable for both small business and multinationals with facilities around the globe. GV-ASManager can control up to 1000 units of GV-AS / GV-EV Controllers. In addition, IP devices can be connected to GV-ASManager through network to provide live video and event associated playback.

Software



  • Integrating video from GeoVision IP devices (GV-System, GV-VMS, GV-Video Server, GV-Compact DVR, GV-IP Camera) , third-party IP cameras and ONVIF, PSIA and RTSP protocols
  • Four access mode options: Card only mode, Card and PIN Code mode, Card or Common mode, Release mode
  • Alarm condition: door held open, door forced entry, tamper, access denied, duress, fire alarm
  • Up to 256 time zones, weekly schedules and holiday planning for 14 months
  • Anti-Duress operation / Anti-Passback capabilities / Door Interlock
  • Patrol Tour that requires security personnel to check in at specified location
  • Up to 100 Web browser connections
  • Up to 100,000 cards for GV-AS 21 / 41 / 81 series Controllers
  • GV-ASRemote: Client software for remote door monitoring, video playback, stop alarms and force the door to lock/unlock
  • GV-ASWeb: Web based software to remotely watch live view, add / delete cards, users, controllers, access groups, cameras
  • GV-TAWeb: Time and attendance management software for flexible workforce schedule arrangement and Payroll calculation
  • GV-VMWeb: Visitor management software for visitor self registration and visitor record search
  • GV-Access Mobile Applications: iOS and Android mobile device to remote lock / unlock a door and watch live view from cameras associated with a door or lane

Display their FAQs



  • Support Fisheye Dewarping (GeoVision and 3rd party fisheye cameras)
  • Support H.265 and Smart stream CODEC to reduce file size and bandwidth
  • Retail Video Analytic ( People Counting / Heat Map )
  • General Video Analytic (Intrusion Alarm / Crowd Detection / Scene Change Detection / Privacy Mask / Unattended and Missing Object Detection)
  • Advanced Video Analytic (Human Detection / Face Recognition)
  • Dual stream resolution for monitoring and recording to save CPU usage
  • Quick Search Method (Timeline Search / Object Search by Area)
  • Multiple monitor display for live view and playback on different monitors
  • E-Map / IO Device Control / PTZ Auto Tracking
  • Text alert using a PC / mobile device by motion detection / input trigger
  • GeoVision Dynamic DNS server to register domain name if no fixed IP address
  • Support Microsoft SQL and Access database type
  • Central password management integration with Windows Active Directory
  • Support GeoVision, 3rd party IP camera and ONVIF, PSIA, RTSP protocol
  • Support GeoVision central monitoring station software (GV-Center V2 / GV-Vital Sign Monitor / GV-Dispatch Server / GV-Control Center)
  • Mobile Remote Viewing (GV-Eye for Android Smartphone and iPhone / iPod / iPad)

IP Control Panel / Kit

GV-AS2120 IP Control Panel




  • One-way control: 4 doors
  • Two-way control: 2 doors by Wiegand only, 4 doors by Wiegand, RS-485 and network
  • 4 Wiegand card readers of 26 to 64 bits
  • 8 GV-Readers and GV-GF Fingerprint Readers through RS-485 and network
  • Built-in 8 digital inputs and 8 relay outputs
  • Suitable for controlling doors, parking gates and access to elevator call buttons
  • Support for tampering alarm
  • DC 12V, 3A / PoE+ (IEEE 802.3at, provides up to 25.5 W)

GV-EV48 Elevator IP Control Panel


 GV-EV48 is an elevator controller designed to control access of 1 elevator with a maximum of 48 floors. Up to 2 GV-Readers / GV-GF Fingerprint Readers can be connected to GV-EV48 using RS-485 connection and network connection. GV-EV48 can recognize identification cards and grant access to the authorized floors only.



  • Grant access to specific elevator floors using access cards, card's PIN code or fingerprint
  • GV-EV48 – 24 Floors: Built-in 24 relay outputs to support up to 24 elevator floors
  • GV-EV48 – 48 Floors: Built-in 48 relay outputs to support up to 48 elevator floors
  • Support up to 2 GV-Readers / GV-GF Fingerprint Readers through network connection and RS-485 connection

GV-AS4111 Kit


 GV-AS4111 Kit is a cabinet containing a GV-AS4111, a power adapter board, a power supply and a casing for backup battery. The power supply provides power to GV-AS4111 Kit and up to 8



  • One-way control: 4 doors
  • Two-way control: 4 doors by Wiegand / RS-485 / Network
  • 8 Wiegand card readers of 26 to 64 bits
  • 8 GV-Readers and GV-GF Fingerprint Readers through RS-485 and network
  • Built-in 16 inputs and 24 relay outputs
  • Suitable for controlling doors, parking gates and access to elevator call buttons
  • Support for tampering alarm output devices (12V, 0.5A per device).

GV-AS8111 Kit


 GV‐AS8111 Kit is a cabinet containing a GV‐AS8111, a power adapter board, a power supply and a casing for backup battery. The power supply provides power to GV‐AS8111 Kit and up to 8



  • One-way control: 8 doors
  • Two-way control: 4 doors by Wiegand only; 8 doors by RS-485 / network; 8 doors with max 4 doors by Wiegand and other doors by RS-485 / network
  • 8 Wiegand card readers of 26 to 64 bits
  • 16 GV-Readers and GV-GF Fingerprint Readers through RS-485 and network
  • Built-in 16 inputs and 24 relay outputs
  • Suitable for controlling doors, parking gates and access to elevator call buttons
  • Support for tampering alarmoutput devices (12V, 0.5A per device).

GV-ASManager


 GV-ASManager offers a network access control solution suitable for both small business and multinationals with facilities around the globe. GV-ASManager can control up to 1000 units of GV-AS / GV-EV Controllers. In addition, IP devices can be connected to GV-ASManager through network to provide live video and event associated playback.



  • Integrating video from GeoVision IP devices (GV-System, GV-VMS, GV-Video Server, GV-Compact DVR, GV-IP Camera) , third-party IP cameras and ONVIF, PSIA and RTSP protocols
  • Four access mode options: Card only mode, Card and PIN Code mode, Card or Common mode, Release mode
  • Alarm condition: door held open, door forced entry, tamper, access denied, duress, fire alarm
  • Up to 256 time zones, weekly schedules and holiday planning for 14 months
  • Anti-Duress operation / Anti-Passback capabilities / Door Interlock
  • Continues etc.

GV-Patrol for Android


 By utilizing GV-AS ID cards / Key fobs / Patrol tags as movable patrol points, GV-Patrol app allows users to set up and perform patrol tours from Android-based mobile devices. During patrol tours, it is able to take notes and snapshots to be sent to GV-ASManager for detailed patrol records.

OS Supported : Android 4.4 or later (NFC required)
System supported : GV-ASManager V5.1.0.0 or later (with GV-Patrol dongle license)

GeoVison Parking Lot Access control



The GeoVision All-In-One Parking Solution
